PLAN vs. USN FFG SIDE BY SIDE COMPARISON
By Jeff Head - Last Update: January 25, 2013




This page provides a comparison between guided-missile frigates of the People's Republic of China Navy and those of the US Navy. Currently the Chinese are very rapidly increasing their numbers of modern firgates:
FFG - GENERAL PURPOSE - PLAN FFG - GENERAL PURPOSE - USN

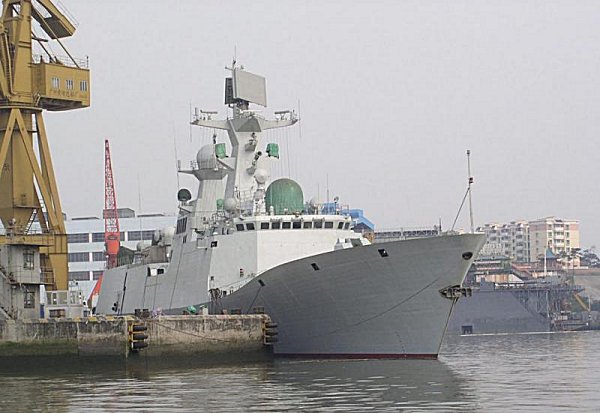

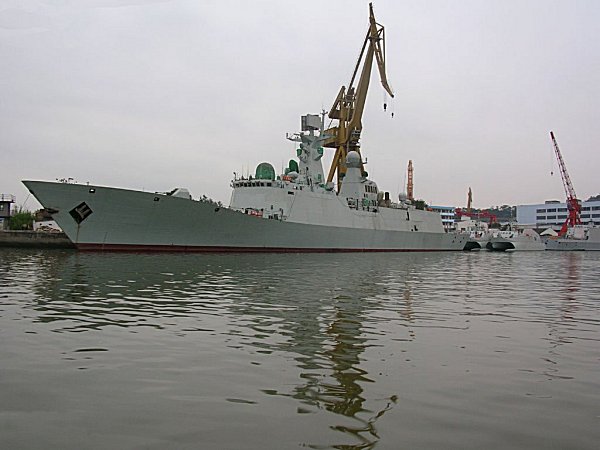

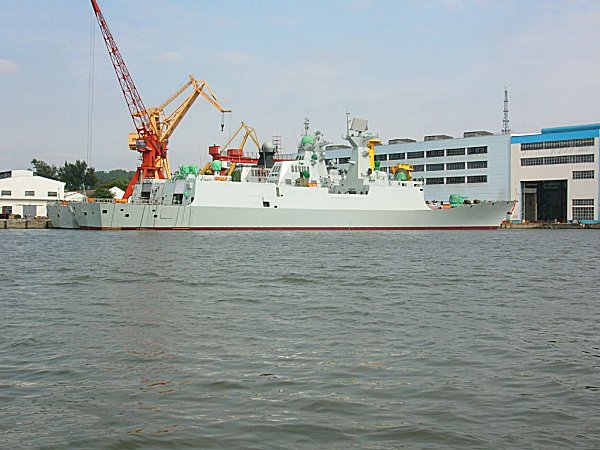

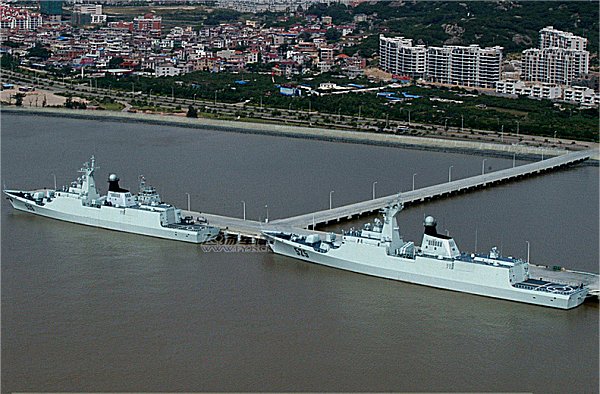

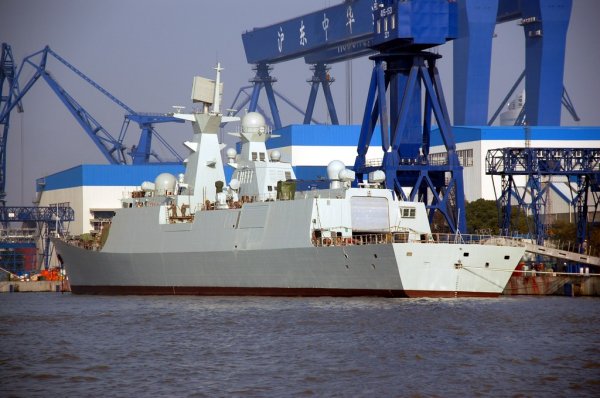

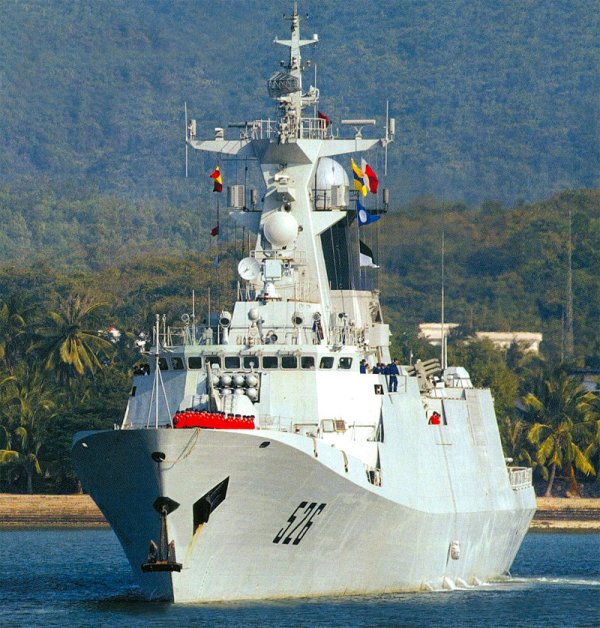

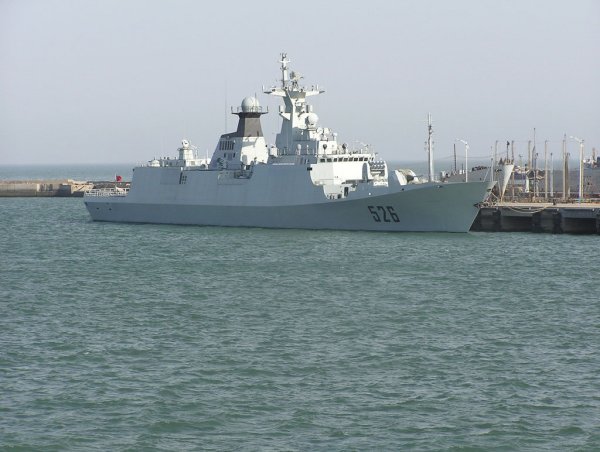

TYPE 054(A) (Jiangkai I & II)
Qty: 20 (more building)
Length: 410 ft (125m) est.
Beam: 50 ft (15m) est.
Draft: 20 ft (6m) est.
Displace (Full): 3,600 ton est. (054)
Displace (Full): 4,000 ton est. (054A)
Propulsion: 4 SEMT Pielstick, codad, 2 shafts
Speed: 32+ knots
Range: 6,500 nautical miles (18 knots) est.
Crew: 250 est.
Helicopter(s): 1 KA-27 ASW
Sensors:
- Type 363S, MR36A Radars (054)
- Fregat M2EM Top Plate, Front dome (054A)
- Unknown Sonars
Armament:
- 1 x 8 HQ-7 (054)
- 1 x 32 VLS 9M38/HQ-16 (054A)
- 8 x YJ-83 SSM
- 1 x 76mm DP Guns
- 4 x AK-630 30mm CIWS (054)
- 2 x Type 730 30mm CIWS (054A)
- 6 x 533mm torpedoes
- 2 x Type 87 240mm, 6 tube ASW rockets ea.

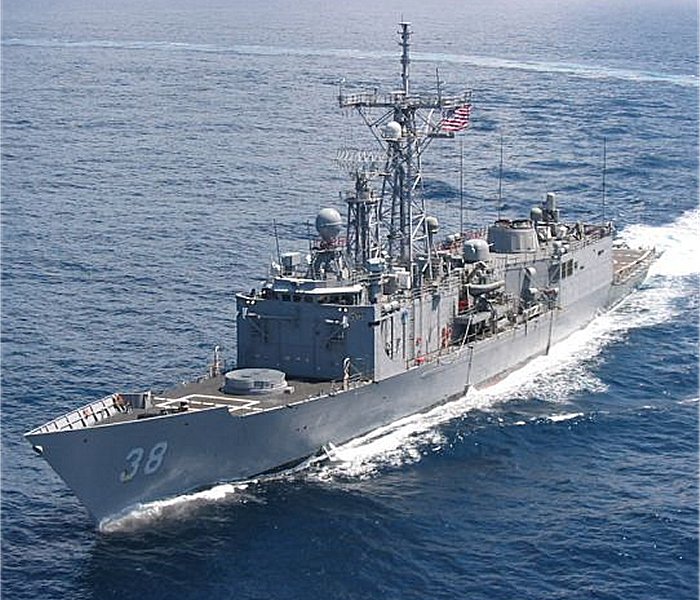

O.H. Perry
Qty: 27
Displacement: 4,100 t
Crew: 215
Speed: 30 knots
Aircraft: 2 helo
Armament:
1 - 76mm DP
1 - 30mm Autocannon
1 - 20mm CIWS
6 - MK32 Torpedo tubes

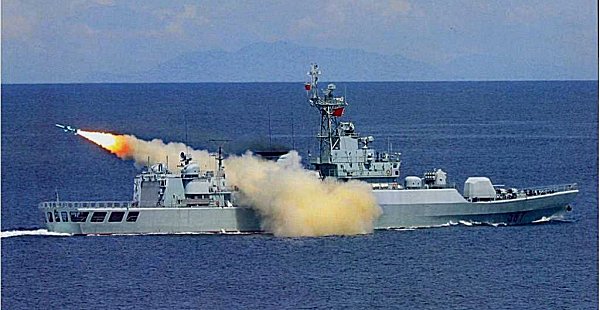

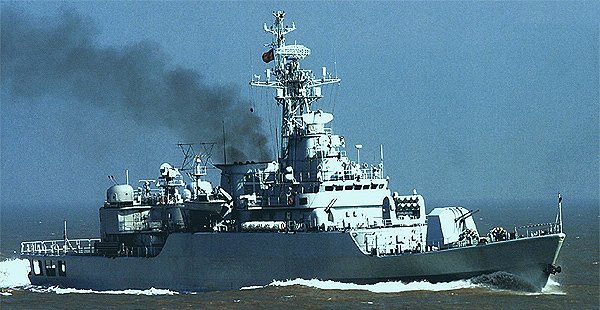

TYPE 053 (Jiangwei)
Qty: 20
Displacement: 2,400 t
Crew: 168
Speed: 28 knots
Aircraft: 1 helo
Armament:
8 - LR ASM
12 - SR AAW
1 - Dual 100mm DP
4 - Dual 37mm AAW
2 - 6 Tube ASW rockets

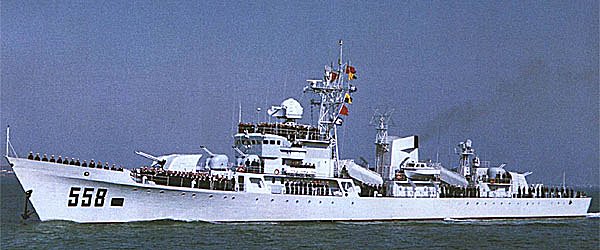

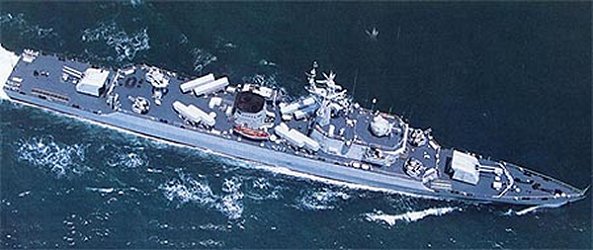

TYPE 053 (Jianghu)
Qty: 22
Displacement: 2,000 t
Crew: 200
Speed: 28 knots
Aircraft: 0
Armament:
8 - LR ASM
2 - Dual 100mm DP
4 - Dual 37mm AAW
2 - 6 Tube ASW rockets
