THE CHINESE NAVY (PLAN) ANTI-PIRACY MISSION OFF SOMALIA
By Jeff Head - Last Update: September 25, 2012




Any amount appreciated




In December of 2008, in response to pirate attacks against Chinese commercial shipping in the Gulf of Aden and elsewhere in the Indian Ocean off the coast of Africa, the People's Republic of China deployed a task force consisting of three vessels to the area to join other nations combating the pirates in the area. It was the first combat deployment of PLAN warships outside of the China Seas in modern history. The PLAN chose two of its best and most capable indigenouus guided-missile destroyers (a Type 052B and a Type 052C) for this operation, supported by its own indigenous replensihment ship, the Weishanhu. That Task Force was the first of several task forces who have been maintaining station and conducting anti-piracy missions since that time.

The decision to send warships was carefully considered in light of what the interntial community was doing as a whole, both with the Euopean Union, the United States, theUnited Nations and others participating, and came after thWO incidents in 2008 involving Chinese commerical vessels.

November 14, 2008 - the Tanyo 8 with a crew of 24, and owned by Tianjin Ocean Fishing Corp, was hijacked off the Kenya coast by Somali pirates. The crew and vessel released in February 2009 after paying an unknown ransom.
December 17, 2008 - the Zhenhua 4 with a 30 member crew, and owned by China Communications Construction Co. was attacked in the Gulf of Aden . The Chinese ship escaped after the crew fought using water cannon and moltav cocktails and after a military helicopter from a Malaysian vessel arrived and drove off the pirates.

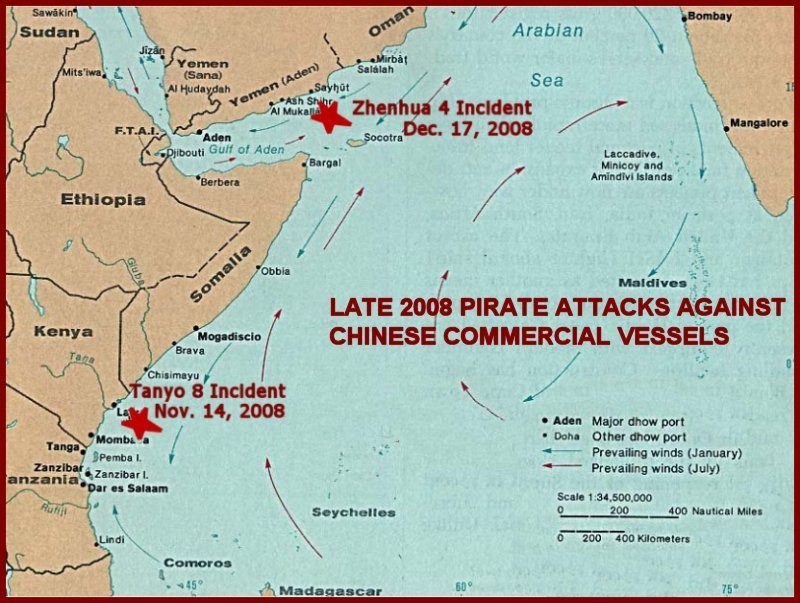

The following map indicates the location of these attacks and how wide dispersed and spread out the problem is.

Pictures like the following, of Chinese vessels being boarded and Chinese crewmen fighting back against pirates armed with automatic weapons and RPGs surely figured into the decision by the Chinese leaders.

Another, more detailed map of the Gulf of Arden and the Somalia Coast was produced by the UN regarding the priating activities in 2008. (Click on the map to be directed to the larger 6Mb PDF file)

This page will pictorially document the vessels assigned to the anti-piracy mission, how long they are on station, and the types of operations they conduct.

The PLAN anti-piracy task forces, or flotillas at the PLAN is calling them, stay on station apporximately three or four months before being replaced in rotation by another Task Force consisting of similar vessels. The operation escortes Chinese and other friendly vessels through pirate endangered waters, works with other nations vessels who are accomplishing the same mission, and investigates reports of attacks or pending attacks by Somali pirates. Numerous Chinese and other vessels now owe a thanks to the PLAN for safely escroting through those dangerous waters.

To date, four flotillas have been dispatched. In December of 2009, the 4th flotilla was increased to three warships with the addition of FFG-568, the Chaohu, a Type 54A, Jiangkai II Class frigate. It is expected that the fourth will return to China within the next month or two to be replaced by a fifth. The entire operation is giving the PLAN and many of its vessels and crews very valuable operational experience. It is rumored that the fifth flotilla may include the PLAN's new PLD, the 998 Kunlunshan.


PLAN ANTI-PIRACY FLOTILLAS ASSIGNED TO SOMALI WATERS
(Click on any picture or vessel name for a larger image)
1ST FLOTILLA DEC. 2008 - APR. 2009 2ND FLOTILLA APR. 2009 - AUG. 2009
IMAGE SHIP NAME IMAGE SHIP NAME
DDG-171 Haikou DDG-167 Shenzhen

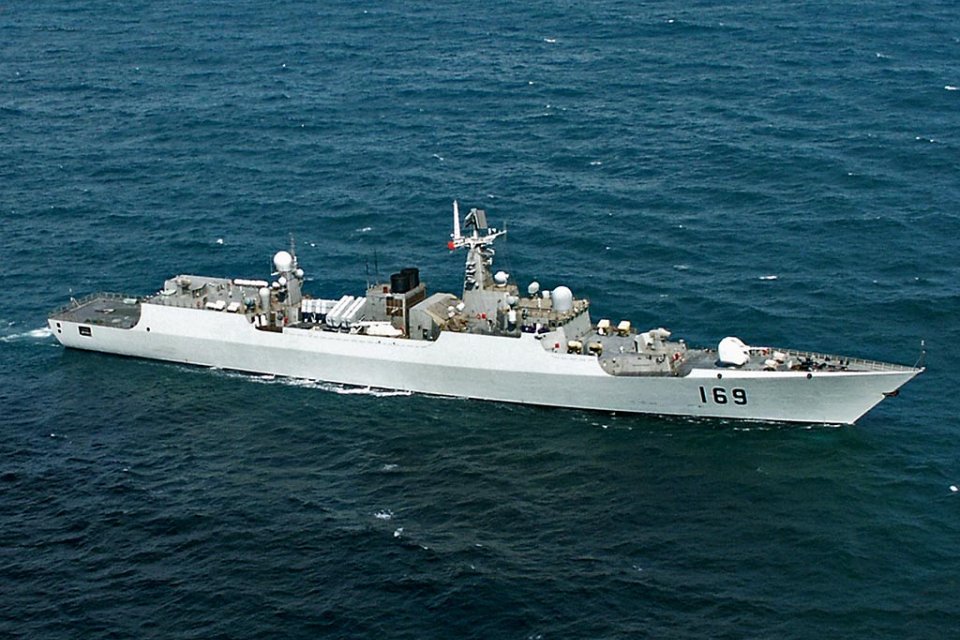

DDG-169 Wuhan FFG-570 Huangshan
AOR-887 Weishanhu AOR-887 Weishanhu
3RD FLOTILLA AUG. 2009 - OCT. 2009 4TH FLOTILLA OCT. 2009 - FEB. 2010
IMAGE SHIP NAME IMAGE SHIP NAME
FFG-529 Zhoushan FFG-525 Ma'anshan
FFG-530 Xuzhou FFG-526 Wenzhou
AOR-886 Qiandaohu FFG-568 Chaohu
AOR-886 Qiandaohu


The four different flotillas have comprised three different classes of guided missile destroyers, two different classes of guided missile frigates, and the latest class of replenshment vessels in the Chinese Navy. As listed above in the flotillas Section, a total of eleven different vessels from these various classes have gained this experience conducting the anti-piracy mission for the PLAN off Somalia to date. What follows is a listing of each class and its specifications.

PLAN SHIP CLASSS INVOLVED OFF SOMALIA
(Click on an picture for a larger image)

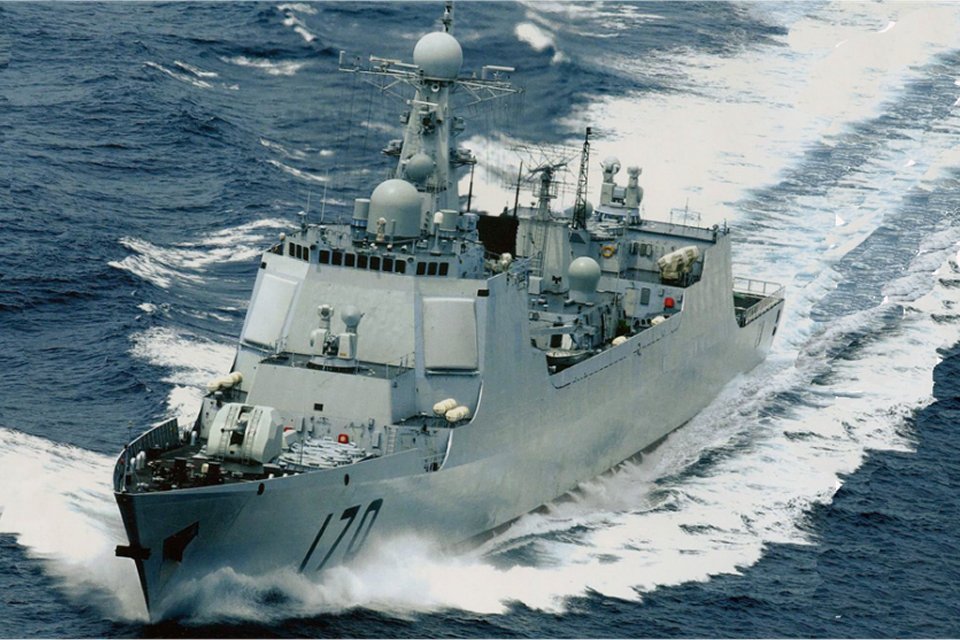

LANZHOU CLASS DDG
SPECIFICATIONS IMAGES
NATO Designate: Luyang-II
Displacement: 7,500 t
Length: 154m
Beam: 17m
Draft: 6m
Crew: 344
Speed: 33 knots
Aircraft: 1 medium helo (Ka-28, Z-9c)
Ships in Class: 2
Armament:
8 - LR SS ASM
48 - LR VLS AAW 1 - 100mm DP gun
2 - 30mm CIWS


GUANGZHOU CLASS DDG
SPECIFICATIONS IMAGES
NATO Designate: Luyang
Displacement: 6,500 t
Length: 154m
Beam: 17m
Draft: 6m
Crew: 280
Speed: 32 knots
Aircraft: 1 medium helo (Ka-28)
Ships in Class: 2
Armament:
16 - LR SS ASM
48 - MR VLS AAW
1 - 100mm DP Gun
2 - 30mm CIWS
6 - 324mm Torpedo tubes
2 - 12 tube ASW rockets
4 - 18 tube MLRS


LUHAI CLASS DDG
SPECIFICATIONS IMAGES
NATO Designate: Luhai
Displacement: 6,100 t
Length: 153m
Beam: 16.5m
Draft: 6m
Crew: 280
Speed: 30 knots
Aircraft: 2 medium helo (Ka-28, Z-9c)
Ships in Class: 1
Armament:
16 - LR SS ASM
24 - SR VLS AAW
4 - 100mm DP Gun
2 - 37mm AAW
6 - 324mm Torpedo tubes


JIANGKAI II CLASS FFG
SPECIFICATIONS IMAGES
NATO Designate: Jiangkai-II
Displacement: 4,500 t
Length: 134m
Beam: 16m
Draft: 6m
Crew: 250
Speed: 32 knots
Aircraft: 1 medium helo (Ka-28, Z-9c)
Ships in Class: 6
Armament:
1 - VLS 9M38/HQ-16, 32 Missiles
8 - LR YJ-83 SSM
1 - 76mm DP Gun
2 - Type 730 30mm CIWS
6 - 533mm torpedoes
2 - 6 tube ASW launchers w/36 rockets


JIANGKAI I CLASS FFG
SPECIFICATIONS IMAGES
NATO Designate: Jiangkai-I
Displacement: 4,300 t
Length: 134m
Beam: 16m
Draft: 6m
Crew: 250
Speed: 32 knots
Aircraft: 1 medium helo (Ka-28)
Ships in Class: 2
Armament:
8 - HQ-7 SR AAW Missiles
8 - LR YJ-83 SSM
1 - 76mm DP Gun
4 - AK-630 30mm CIWS
6 - 533mm torpedoes
2 - 6 tube ASW launchers w/36 rockets

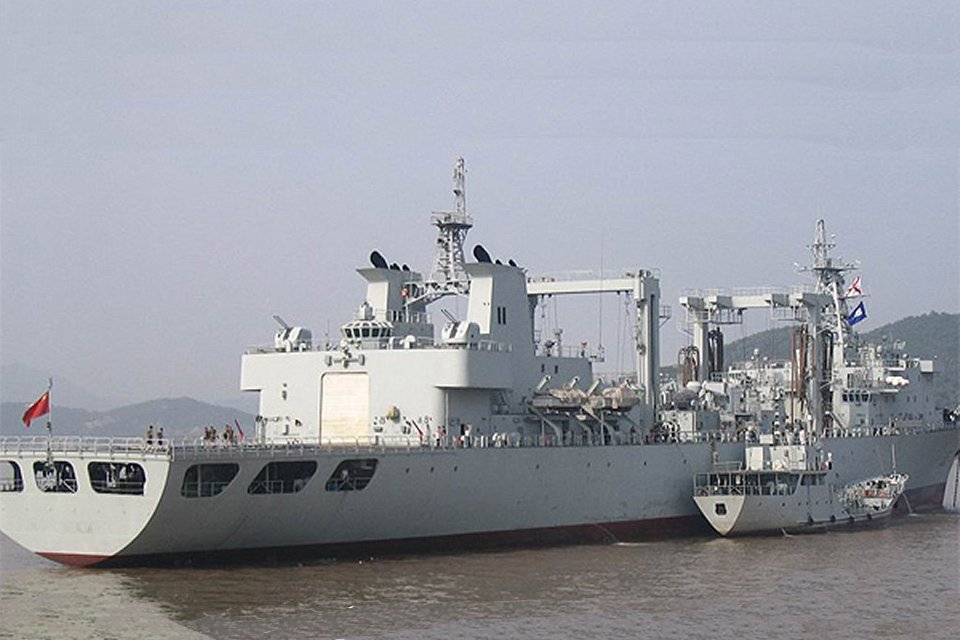

QIANDAOHU CLASS AOR
SPECIFICATIONS IMAGES
NATO Designate: Fuchi
Displacement: 23,000 t
Length: 178m
Beam: 25m
Draft: 9m
Crew: 130
Speed: 19 knots
Aircraft: 2 medium helo (Z-8)
Ships in Class: 2
Armament:
4 - Type 76F dual-37mm guns




PLAN VESSELS CARRY OUT ANTI-PIRACY MISSIONS OFF OF SOMALIA
(Click on any picture for a larger image)

Each of the flotillas has formed up in chinese home waters, been given a warm and rousing farewell, and sent on their way to the waters of Somalia where they have performed admirably. In many cases operating alone, but also operating in conjunction with other nation's vessels as they investigate, track, prevent, thwart, and interdict pirate activities in the area conducted against any commercial shipping, and particularly in protecting chinese shipping in the area. As many as 1,000 vessels have been excorted and/or helped by the chinese vessels since their arrival.



PLAN warships gather as flotillas in Chinese waters before setting off for Somalia.



PLAN warships make the long transit to the Indian Ocean where, on arrival they receive their instructions and mission plans.

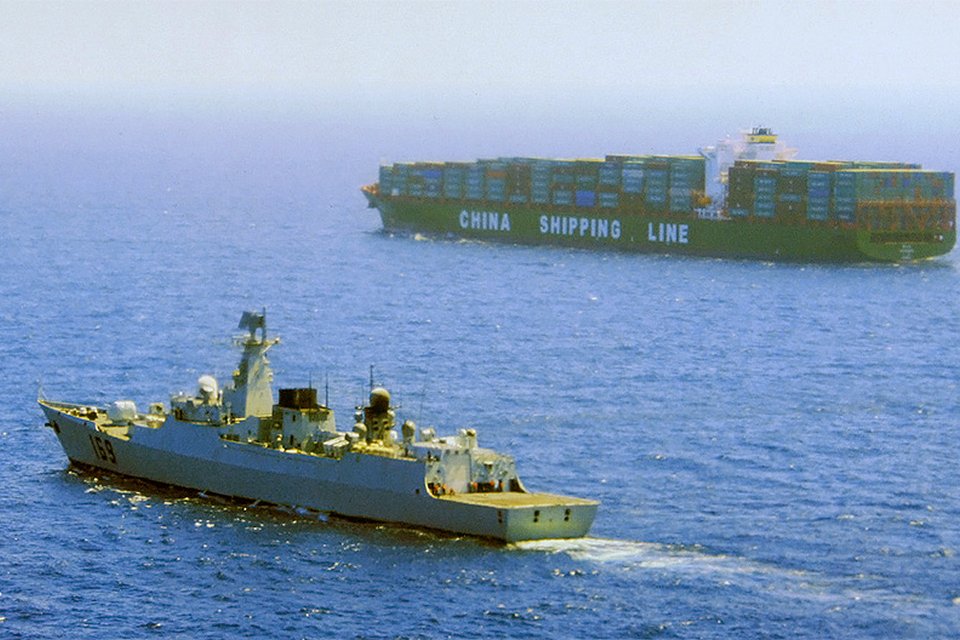

PLAN warships escort commercial shipping, use their helicopters and PLAN special forces to protect shipping and interdict pirates.



PLAN warships escort commercial shipping, use their helicopters and PLAN special forces to protect shipping and interdict pirates.




PLAN warships escort commercial shipping, use their helicopters and PLAN special forces to protect shipping and interdict pirates.
